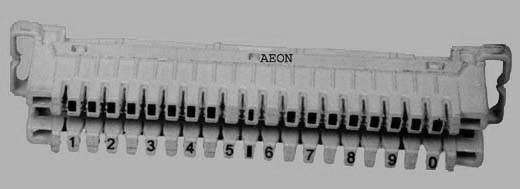

10 pair disconnection module assembly

Network Equipment & Antennas

10 pair 1000-1

Features

Its modular made out a set of plated contacts terminal massed in a special high quality plastic housing

Each module can take 10 pairs of cable wires on one scale and 10 pairs of joins per wires on the other side

Both cables & jumper wires are terminated in the front for easy handling.

The cable side has got combination ribs to route the wire separately. Jumper holes are provided on either side of the    module.

The cable termination is made by IDC (Insulation displacement contact) technique. This provides a gas type connection /    contact.

The IDC/ wire termination is done using a special connection tool

Surge voltage & current protection can be provided mounting the integrated protection module (IPM) on the module

Isolation of the cable and jumper is possible without disturbing the wiring by using disconnection plug

Testing of the lines by isolating the cable side & jumper side is possible by inserting a test plug/cord, which can be inserted in the center of the module without disturbing the wiring.
