FGRP Products for Electrical Utilities
Products for Electrical Utilities

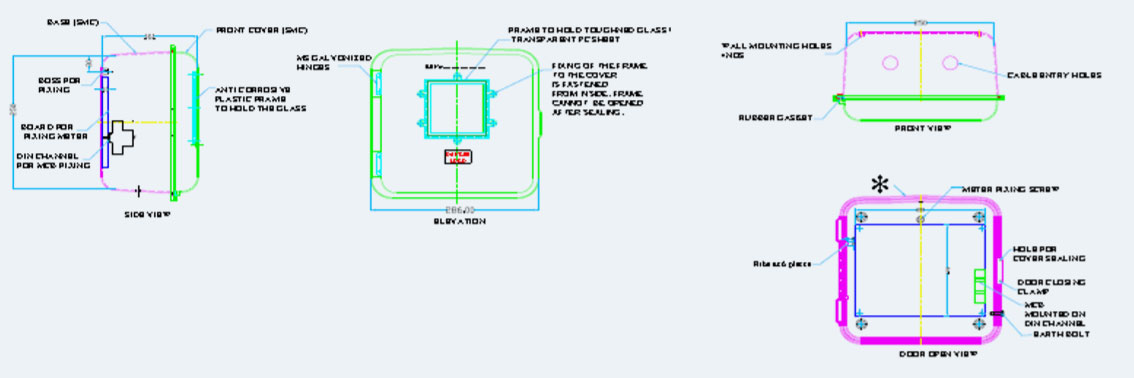

Single phase Energy Meter Box
DTC Metering Box
Street Light Metering Box
LT Box
Power Distribution Box

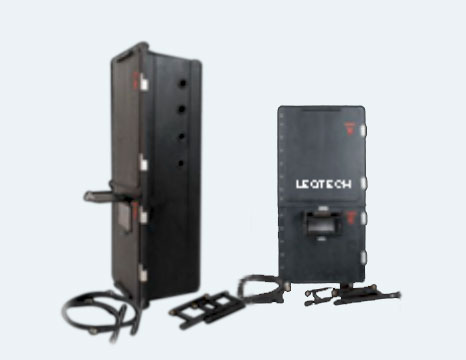

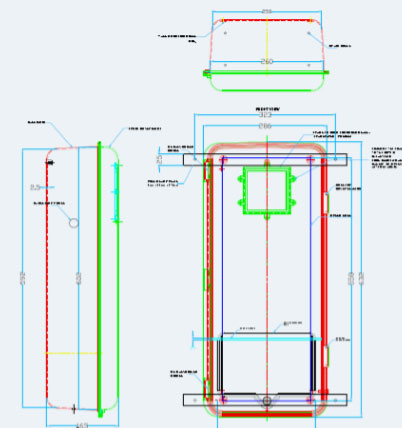

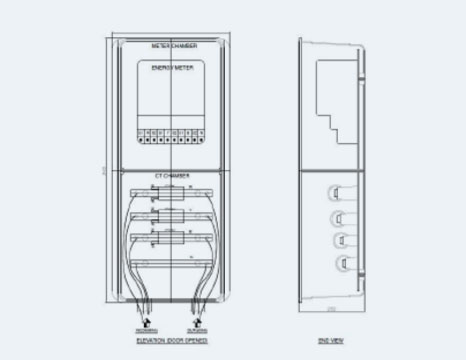

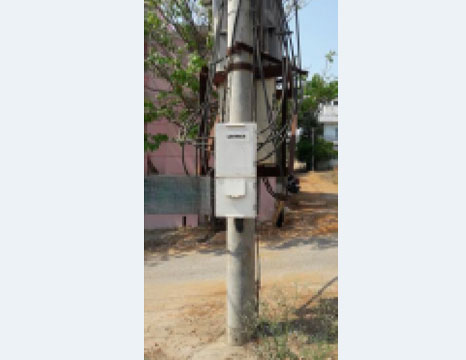

Suitable for DTC Metering Box Application for Distribution transformer centres and also for LT Tamper Proof Box, with Tamper Proof Arrangement, all weather, Box Made out of(FGRP)SMC
Sheet Mould Compound(SMC) which is a composite material with fiber reinforced polyester resin with suitable fillers
Features
- Lower weight compered to Metal enclosures
- High strength
- No rusting – No maintenance
- All Insulated Body – Shock Proof
- All Weather – No deterioration of Cabinet – 100% weatherproof
- Termite Proof
- Cable Entry suitable for Sides as well as Bottom, Suitable for existing as well as new installations
- Pole / Wallmounting arrangement
- Anti Temper – with Hidden hinges and Good locking mechanisms
- No Pilferage – Zero value in resale scrap market.
Size and Suitability
- Dimension : 945*438*250mm
- Suitable for Single Phase Energy meter installations
- Optimam dimensions – Ease of maintenance in the field
- Pole Mounting / Wall Mounting Fixtures supplied with Box
Scope of Supply
- Fully Assembled DTC Metering Box, with Tamper Proof window, Hingns, Clamps, Current Transformers, with or Without Meters
- Fully Assembled LT Tamper Proof box with Tamper Proof windows, Hinges, Clamps, Bus Bar assembly
- Only assembled box, with Tamper proof windows, Hinges, Clamps
Certification
- our boxes have been tested by NABL Laboratories for following
- Fire retardant – Class FV-0 as per IS:11731 Part-2 or V-0 as per UL-94
- High heat distortion temperature (200*C as per IS:10192)
- SMC material as Per IS13410-1992
- IP 54

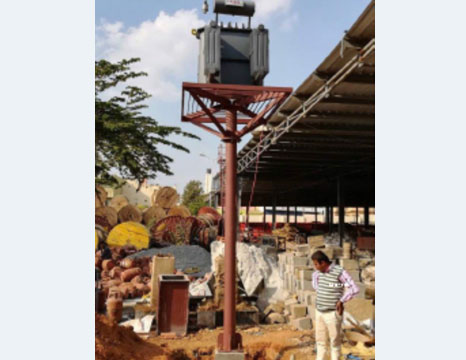

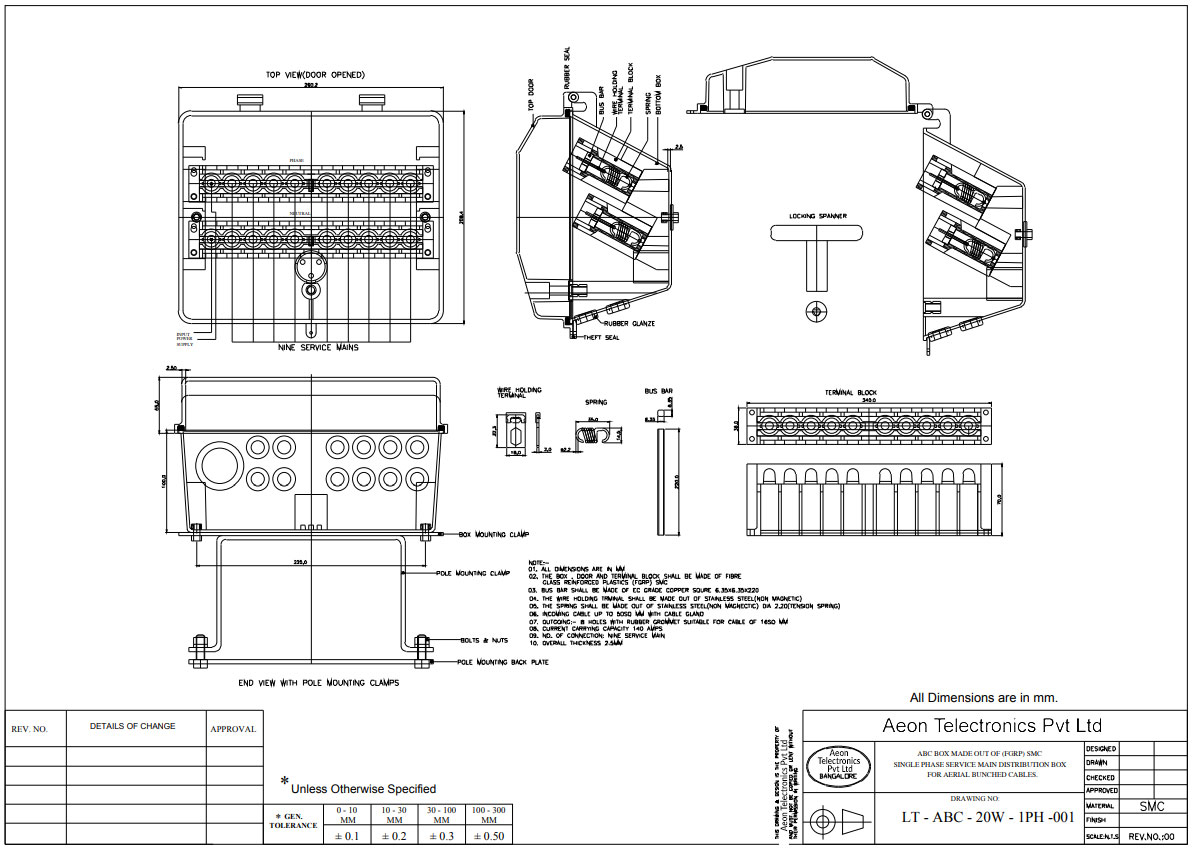

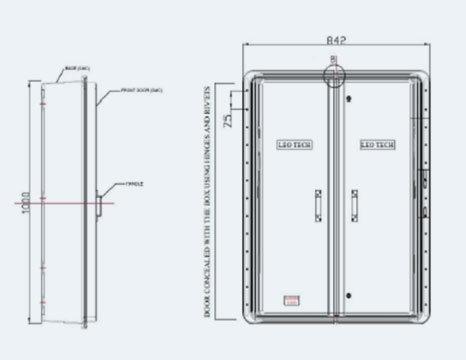

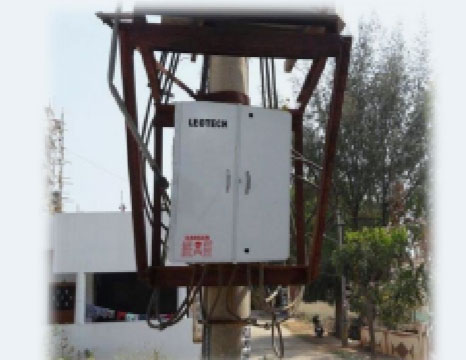

Low Tension Distribution boxes are an electrical junction box enclosure housing electrical connection, to protect the connections and provide a safety barrier.
Low Tension Distribution boxes are made out to Sheet Mould Compound which is a composite material with fiber reinforced polyester resin with suitable fillers
Features
- Lower weight compared to Matal enclosures
- High strength
- No rusting – No maintenance
- All Insulated Body – Shock Proof
- All Weather – No deterioration of Cabnet – 100% weatherproof
- Termite Proof
- Cable Entry from Transformer is well suited at the bottom
- Pole mounting arrangement
- Anti Tamper – with Hidden hings and Good locking mechanisms
- No Pilferage – Zero value in resale scrap market.
Scope of Supply
- Only Bare SMC Box
- Supply with complete assembly with busbar, MCCB, etc
Size and Suitability
- Dimensions : 1000*840*250
- Suitable for Transformers from 100 KVA to 250 KVA
- Optimum dimensions – Ease of maintainance in the field
- Pole Mounting Fixtures supplied with Box
Certification
- Our boxes have been tested by NABL laboratories for following
- Fire retardant – Class FV-0 as per IS:11731 Part-2 or V-0 as per UL-94
- High heat distortion temperature (200*C as per IS:10192)
- Marking – IS 14772
- Dimensions as per IS14772

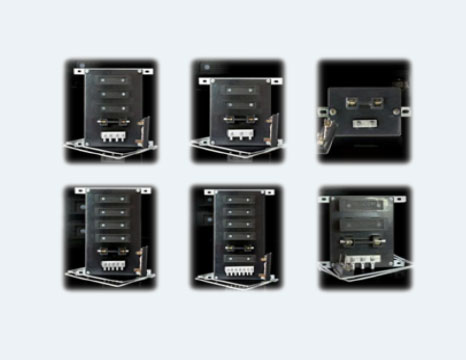

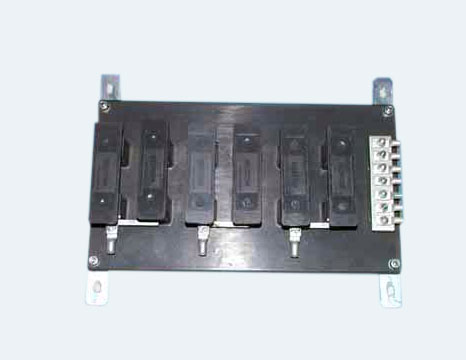

Aerial Fuse boards are used on the Pole, between the service mains and UG cable for LT distribution.
These boards are integrated unit consisting of a moulded base of various sizes and fuse carriers Made of SMC, which makes it all weather, Shock proof, Vandal Proof.
Sheet Mould Compound (SMC) which is a composite material with is a composite material with fiber reinforced polyester resin with suitable fillers
Features
- Pole moutable , suitable for all kinds of Poles used in the Distribution side Integrated parts, Ease and safe to installation and Easy Maintenace
- All the Live holes are sealed with Epoxy Compound.
- FGRP Fuse Boards are Maintenance free, rust proof and shock proof.
- Excellent D-electric strength, No power leakage.
- Safe tried & Tested method.
- Mounting arrangements of Fuse Board on Pole with clamps.
- Fire resistant, Excellent weather ability No decay and Long life
- Withstands coastal / polluted atmosphere, UVradiation and Monsoon resistant.
- Lower Field Complaint
- Safe for human insulated body
- Vandal proof
- Prevents illegal Tapping
- Long life
Certification
- Our FUSES have been tested by NABL laboratories for following
- Fire retardant – Class FV-0 as per IS:11731 Part-2 or V-0 as per UL-94
- High heat distortion temperature (200*C as per IS:10192)
- Dimensions as per IS14772
Supply Scope
- Fully assembled Boards with cutouts and pole fixing clamps
Ranges and Ratings
| 10-22 Amps. | 1 Way Out-out FGRP Aerial Fuse Board. |
| 30 Amps. | 3 Way Out-out FGRP Aerial Fuse Board. |
| 30 Amps. | 4 Way Out-out FGRP Aerial Fuse Board. |
| 30 Amps. | 5 Way Out-out FGRP Aerial Fuse Board. |
| 30 Amps. | 6 Way Out-out FGRP Aerial Fuse Board. |
| 60 Amps. | 3 Way Out-out FGRP Aerial Fuse Board. |

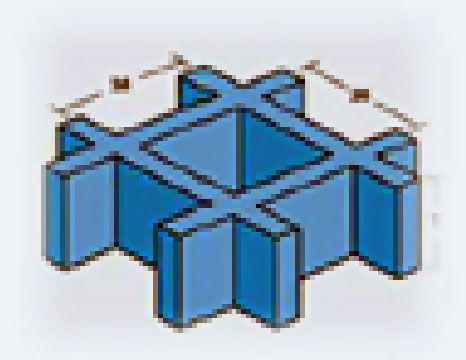

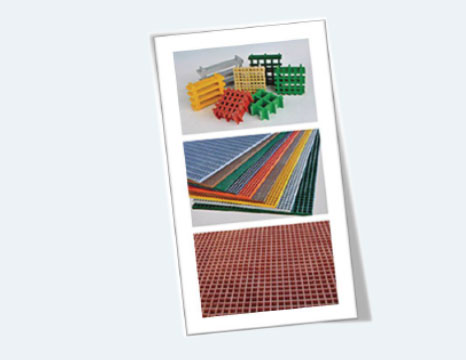

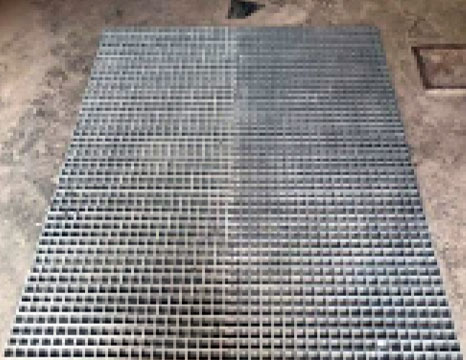

Molded Gratings
FB – FRP Molded grating is manufactured in an open mold systems, Continues E-glass roving’s are placed is the mold in alternating layer and completely wetted out with resin. This continues process produce a integral, one piece construction which provided excellent corrosion resistance as well as bi-directional strength. There are number of different moulds available resulting in extensive range of panel sizes, thickness and mesh pattern
Features
- Lower weight compared to Metal enclosures
- High strength
- No rusting – No maintenance
- All Insulated Body – Shock Proof
- All Weather – No deterioration of Canet – 100% weather prof
- Termite Proof
- Pole / Wallmounting arrangement
- Anti tamper – with Hidden hinges and Good locking mechanism.
- No Pilferage – Zero value in resale scrap market
- Anti – Fire
- Anti corrosion and anti aging
- Anti slippery
- Easy Installation with Various sizes and colours available
Functions
- Anti-slip Floor, stair tread, Footbridge
- Operation platform,trench cover
- Security and safety fence,Handrall
- Off-shore oil rig, shipyard, shipping deck, ceiling
- Ramp ladder, scaffold,railways
- Decorative grid, man-made fountain pool grid
- Non-conductive and non-magnetic
Idustries
- Chemical plant and metalfinishing
- Construction engineering, traffic and transportation.
- Petrochemical engineering, Ocean survey, water engineering
- Food and beverage plants
- Textile printing and dyeing and electronic industries
Size
| Thickness | Bridge width | Mesh space | Sizes |
|---|---|---|---|
| 25 | 6.5/5 | 50*50 | 1800*750 |
| 25 | 6.5/5 | 38*38 | 1800*750 |
